Catfish - 700 HD
General Specs |
|
General Description |
L.O.A: |
7.31 Meters |
7.0 metre Outboard driven aluminium work boat, combining safety, stability |
Beam: |
2.59 Meters |
and comfort with ease and efficiency of operation. |
Draft: |
0.35 Meters |
|
Construction: |
Aluminium |

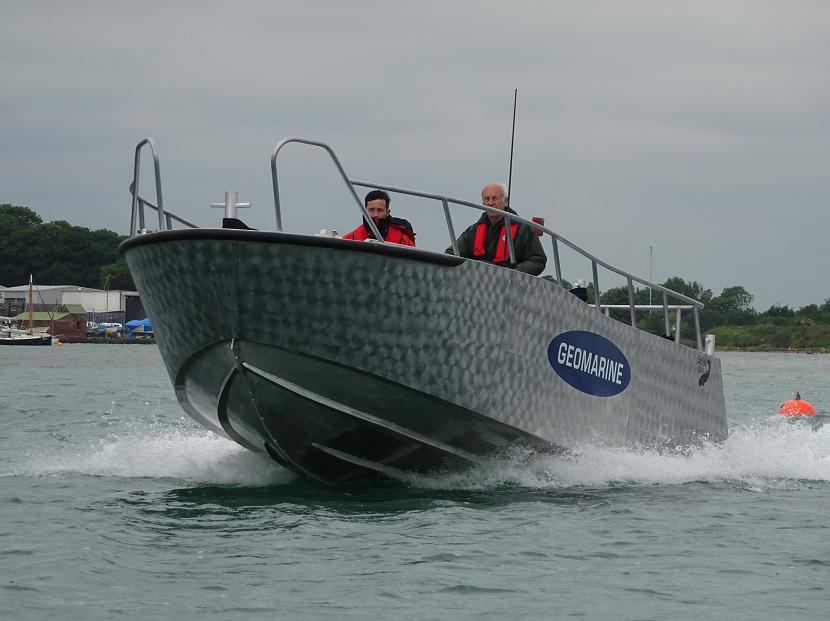

The hull is designed in such a way to reduce spray and wave making yet still |
Max HP |
150 |
provide excellent performance with comfort of ride, the forward hull sections |
Top Speed: |
26 Knts |
afford a great amount of lift to ensure smooth water flow around the hull. Aft |
Service Speed: |
21 Knts |
the angle of dead rise is reduced, thus providing excellent load carrying capa- |
Load Capacity |
1000kg |
bility,
stability, shallow draft and guarantees clean water flow to the propeller. |
|
|
|
Class Rating |
|
Welded aluminium construction throughout for minimal maintenance, |
Rating: |
MCA Standards |
maximum working life and continual operation. Marine grade 5083 (N8) |
|
|
Lloyds approved aluminium is used on all plating in the construction. |
|
|
|
|
|
Reinforced gunwale sections constructed from 5083 grade 5mm thick alloy |
|
|

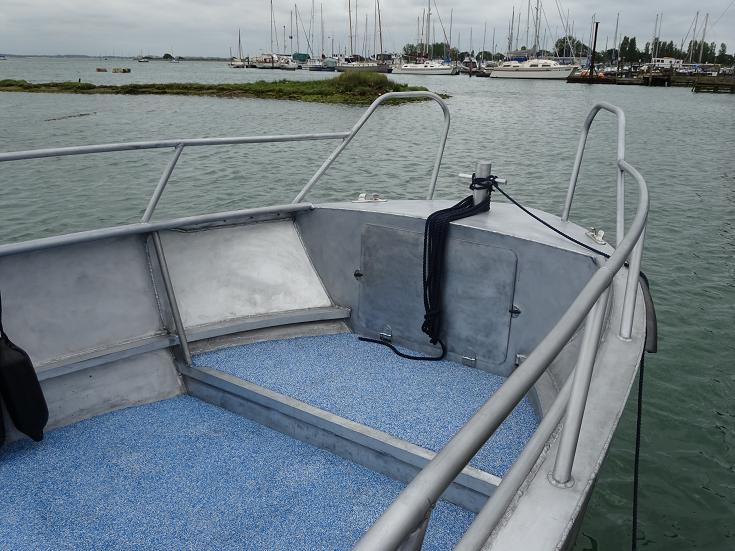

plate. Raised foredeck, with Heavy duty bollard. Full width outboard transom |
|
|
with design option to accommodate single or twin outboard engines. Storage |
|
|
within transom area to accommodate standard 25L Outboard fuel tanks and |
|
|
marine battery if required. High Gunwales designed to offer safe enclosed |
|
|
protection to passengers, crew and cargo. |
|
|
|
Click here to download a PDF specification sheet
