Catfish - TOAD
General Specs |
|
General Description |
L.O.A: |
5.00 Meters |

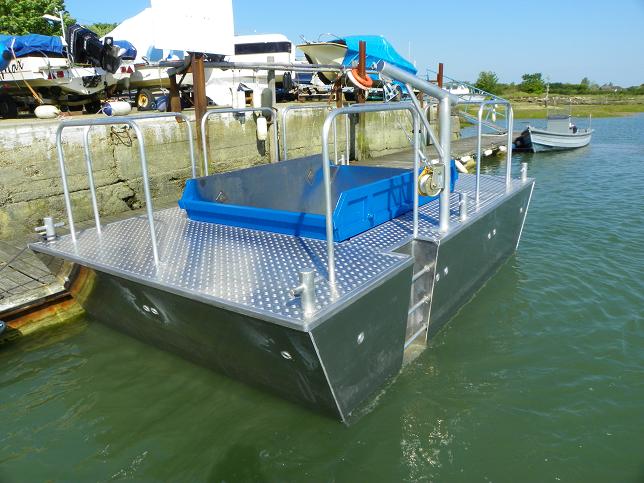

5.0 metre aluminium Cargo Utility Pontoon, providing a safe, stable working |
Beam: |
3.00 Meters |

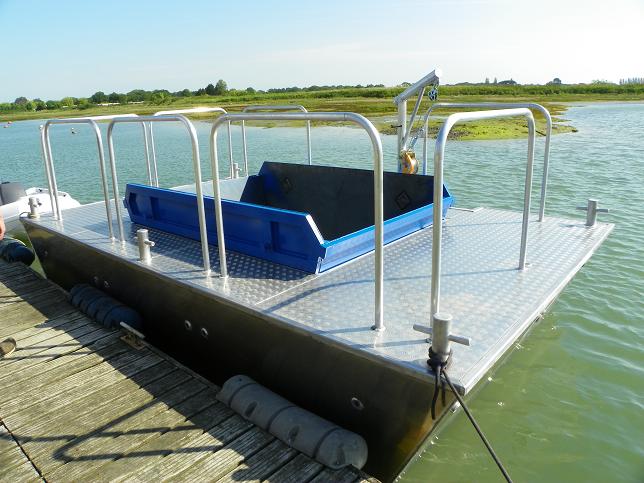

platform with a hopper hold which is designed to transport a variety of cargos |
Draft: |
0.10 Meters |
including a single BS 6 or 8 yard steel skip. |
Depth: |
1.00 metre |
|
Max HP |
150 |
The hull is designed to provide excellent stability and to ensure as smoother |
Top Speed: |
26 Knts |
water flow around the hull as possible. The bow/stern sections are tapered |
Service Speed: |
21 Knts |
vertically to provide excellent load carrying capability, whilst still retaining sea |
Load Capacity |
1000kg |
keeping qualities. |
|
|
|
Class Rating |
|
Welded aluminium construction throughout for minimal maintenance, |
Rating: |
MCA Standards |
maximum working life and continual operation. Marine grade 5083 (N8) |
|
|
Lloyds approved aluminium is used on all plating in the construction. |
|
|
|
|
|
Reinforced gunwale sections constructed from 5083 grade plate & HE30 6082 |
|
|

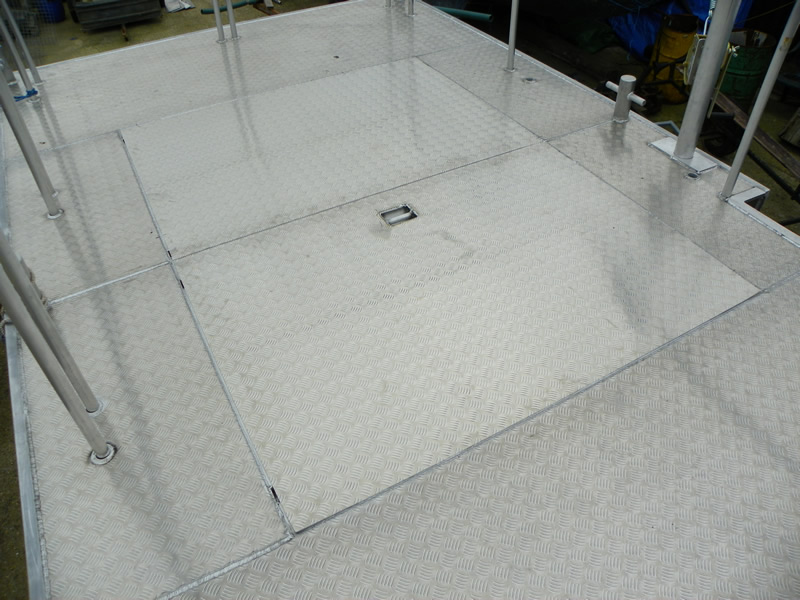

extrusions. Flush foredeck, with 6x Heavy duty fully through-welded bollards |
|
|
which also provide un-laden lifting points. 1m High 38mm diameter tubular |
|
|
handrails provided around the perimeter of the platform designed to offer safe |
|
|
enclosed protection to crew and cargo. These rails are easily removable for |
|
|
varying configurations and duties. |
|
|
|
Click here to download a PDF specification sheet
